Quantitative Oblique Belt Leather Grinding Machine MPX180

Contact Us
Products Features
  • Multi-Functional Design:

    Combines cutting, flat grinding, and pattern grinding in one machine.

  • Easy Sand Paper Replacement:

    Features a loop sanding belt for grinding effect and easy to replace.

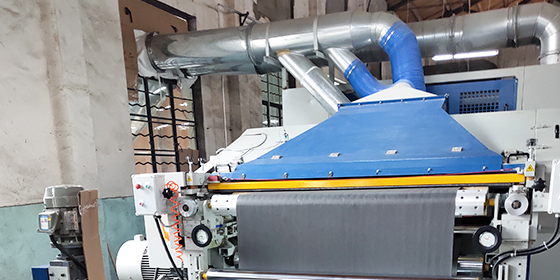

  • Advanced Dust Removal System:

    Equipped with 5 air nozzles, 3 brushes, and a high-efficiency dust extraction system.

  • Wide Application Range:

     Suitable for microfiber, leather, non-woven fabrics, chemical fibers, cotton, synthetic leather, PVC, PU, and more.

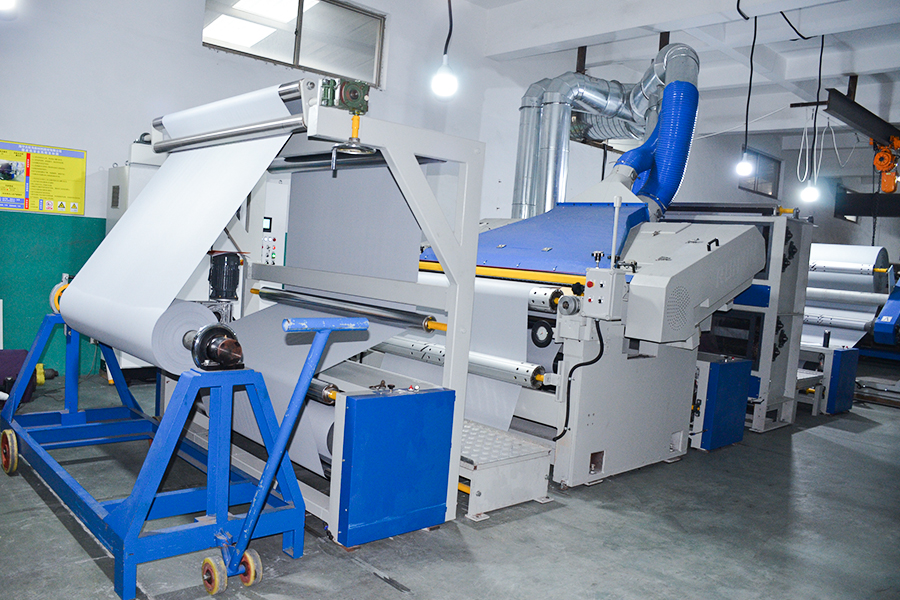

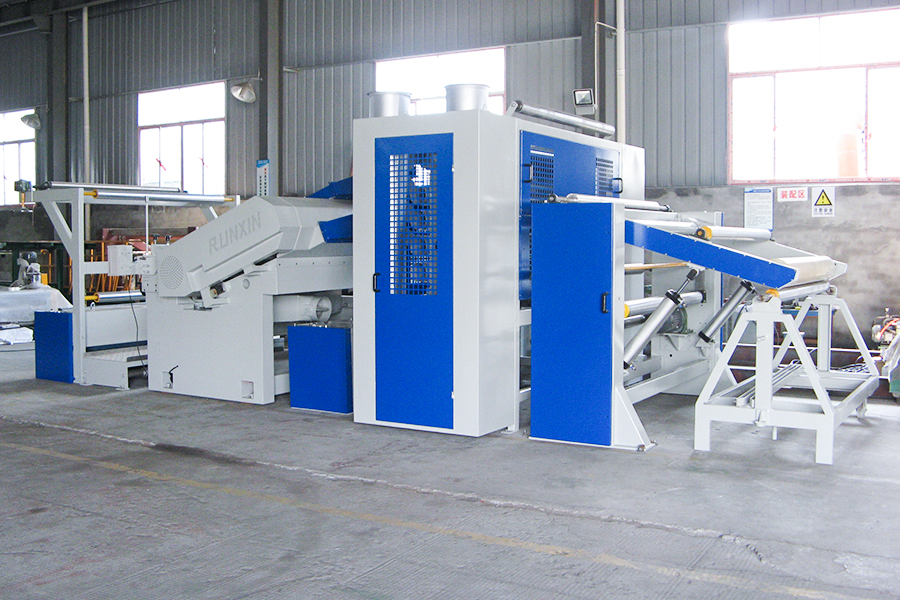

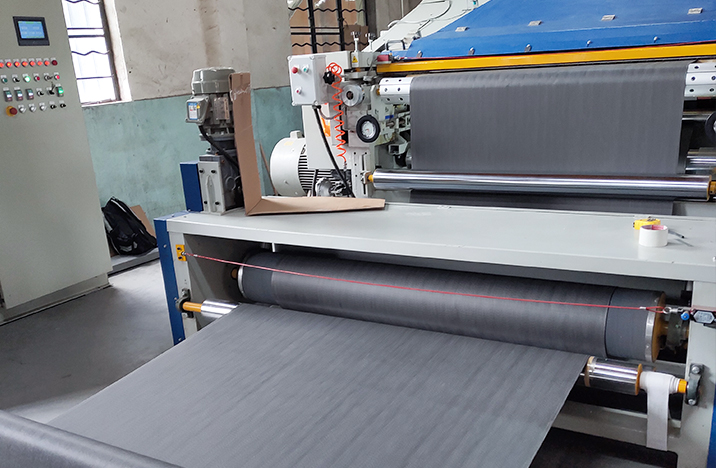

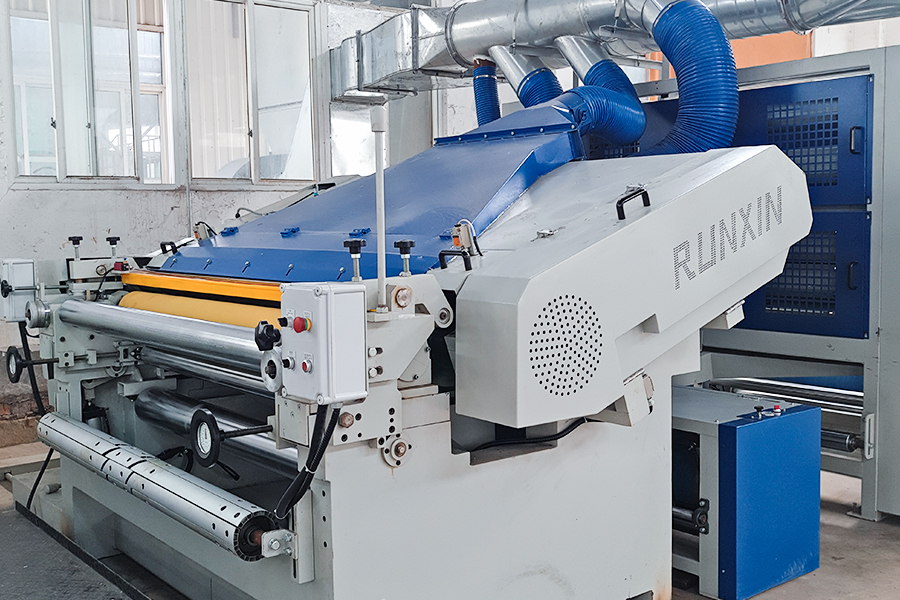

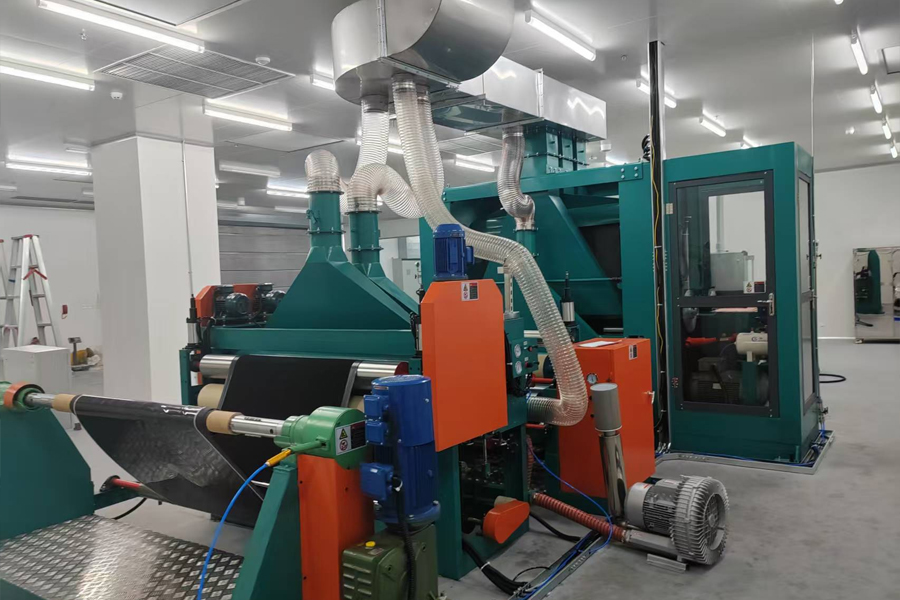

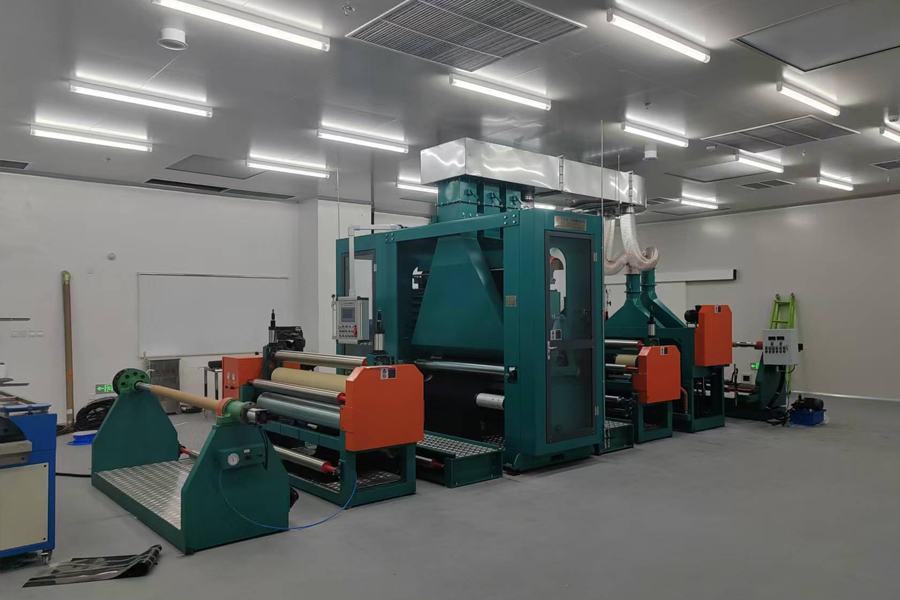

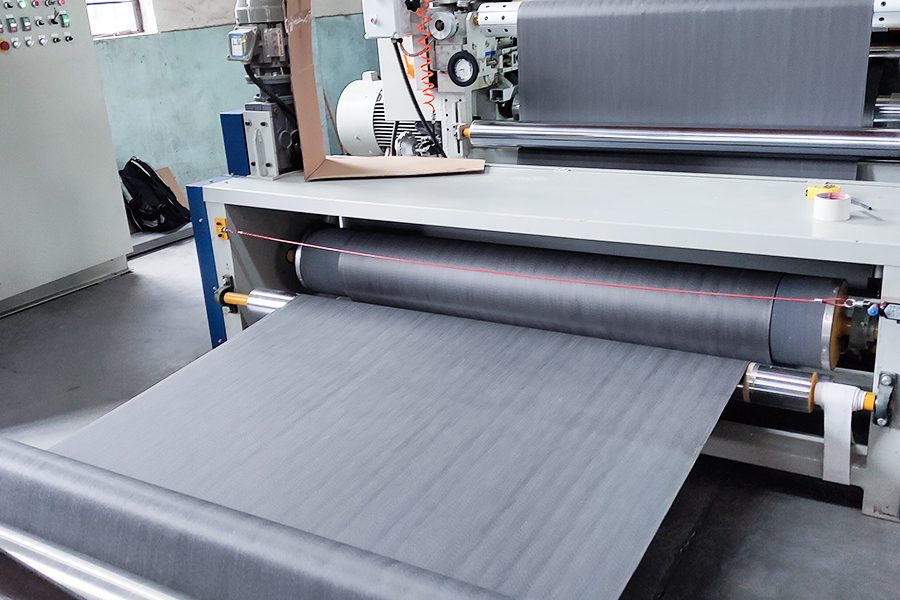

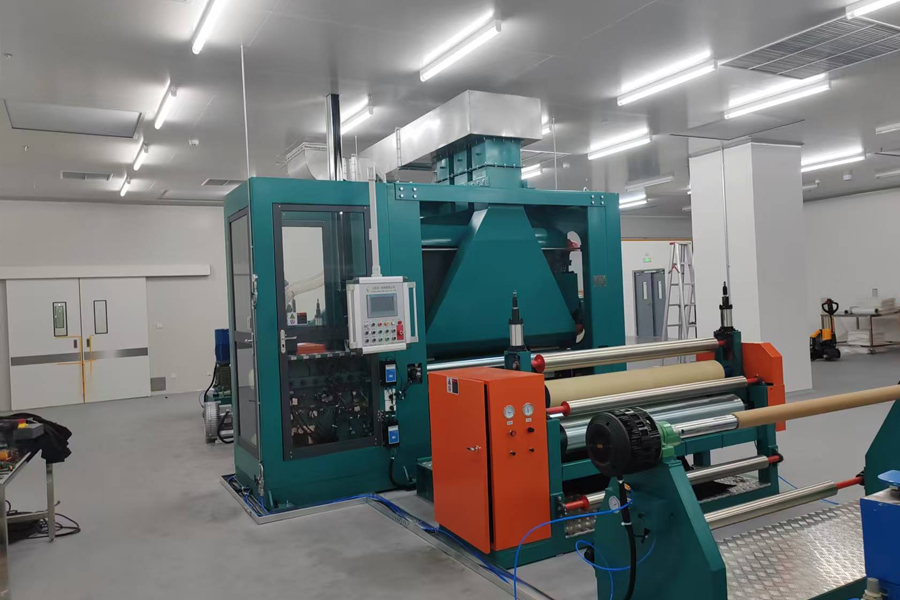

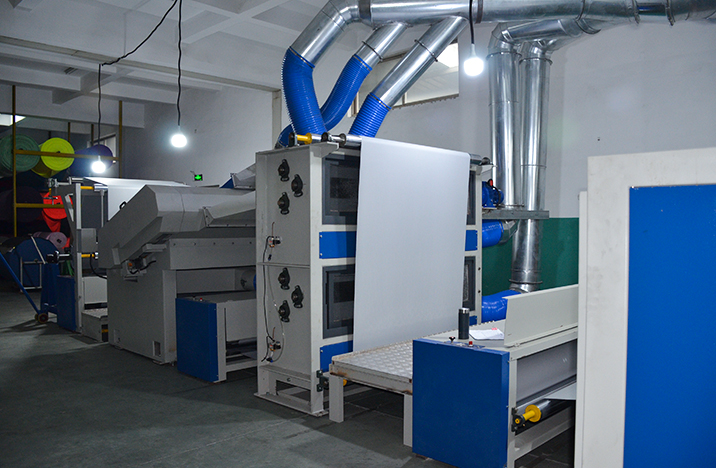

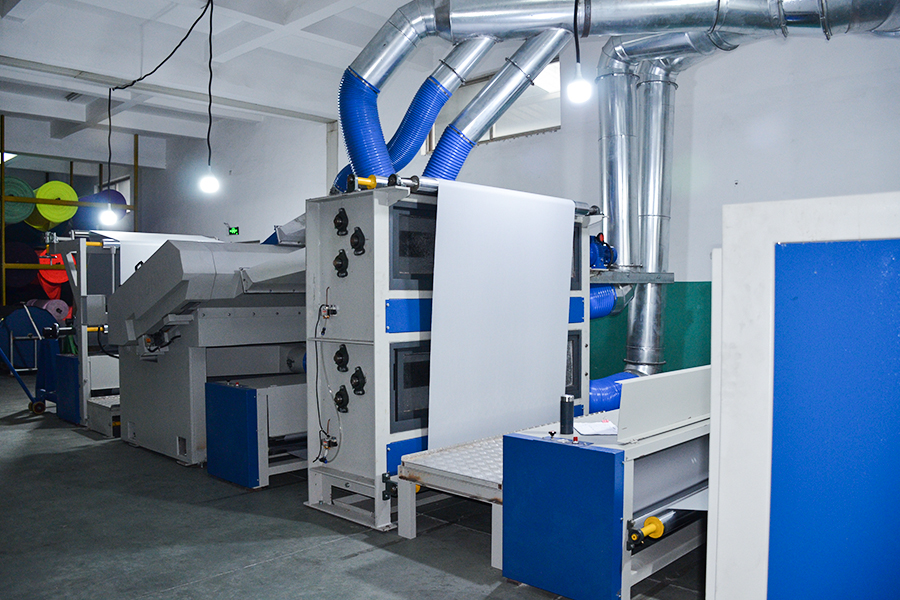

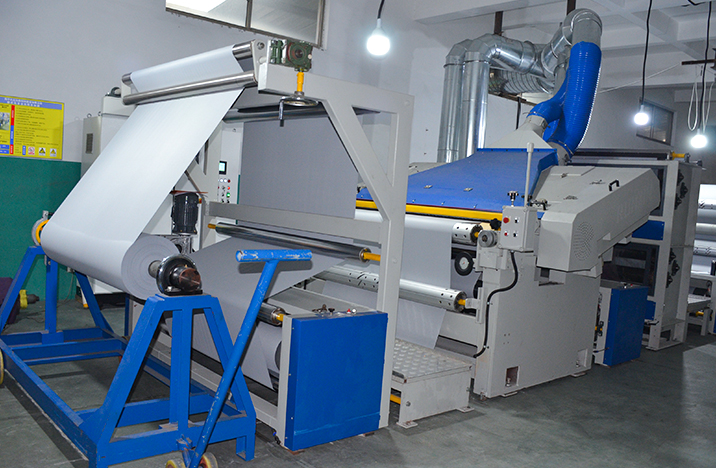

Running Machine on Site
Performance Introduction
Versatile Functionality:

The machine seamlessly integrates cutting, flat grinding, and pattern grinding capabilities, offering a comprehensive solution for diverse leather processing needs.

Superior Grinding Quality:

The machine features a 3200mm loop sanding belt with only one joint, eliminating the issue of horizontal lines commonly caused by traditional sanding machines. This ensures a smooth, high-quality finish without surface imperfections.

Consistent and Uniform Grinding Results:

The extended contact interval between the sanding belt and the fabric surface enhances sanding belt lifespan and allows the dust extraction system more time to remove debris. This ensures the belt remains clean for each contact, improving efficiency and maintaining consistent quality.

Wide Material Compatibility:

Capable of handling various materials such as microfiber, PU, PVC, and more, the machine delivers and stable grinding quality. Adjustable settings allow for precise customization to achieve the desired finish for different materials.

Technical Parameters

Name

 Details

Working Width

1800mm

Max Fabric Width

1600mm

Mechanical Speed

15m/min (Microfiber) 50m/min (Fabric)

Product Thickness

0.6-4m

Compressed Air Pressure

6kg/cm2

Workflow Chart

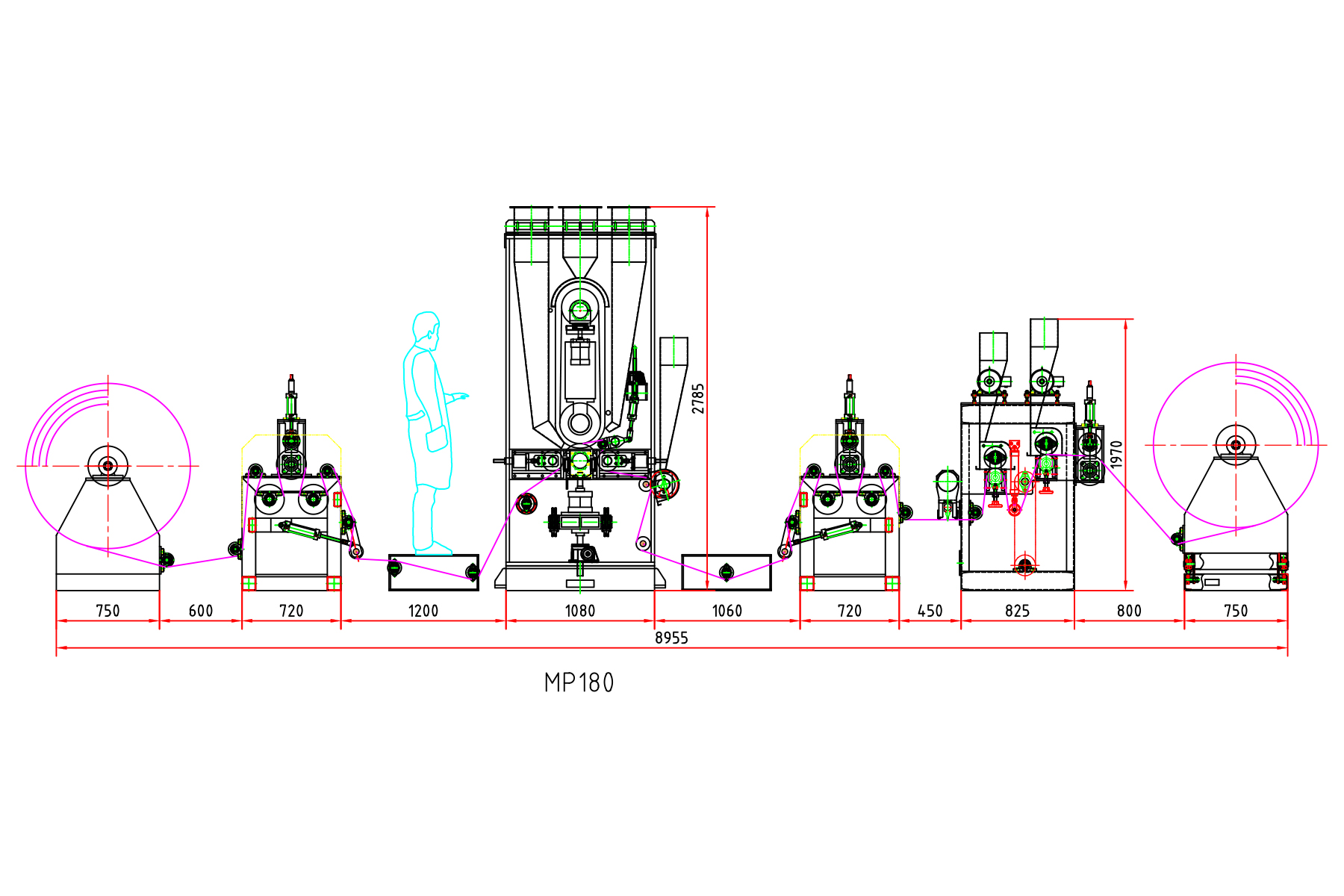

  • MP180 Rational Belt Leather Grinding Machine Workflow

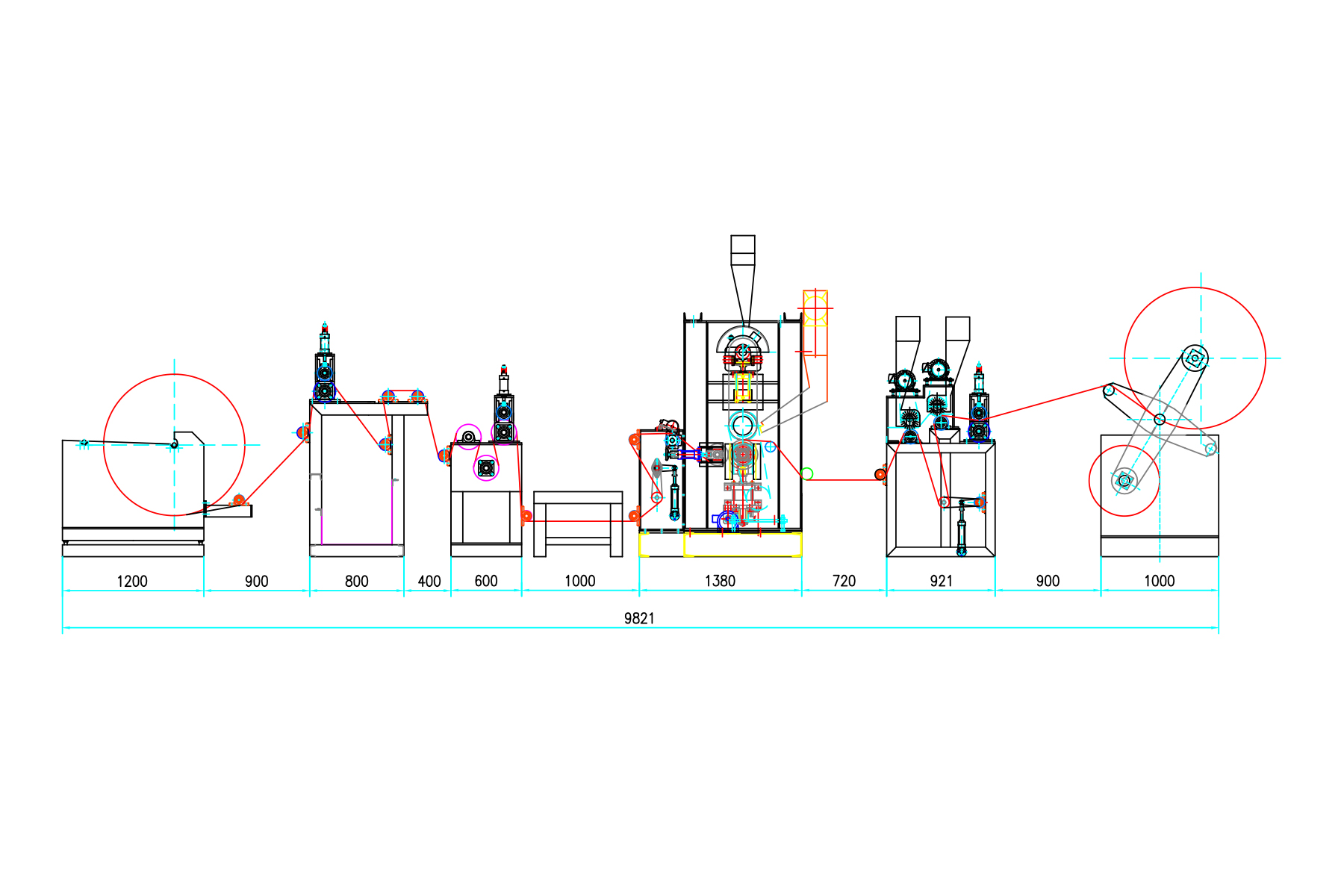

  • MPX80 Rational Belt Leather Grinding Machine Workflow

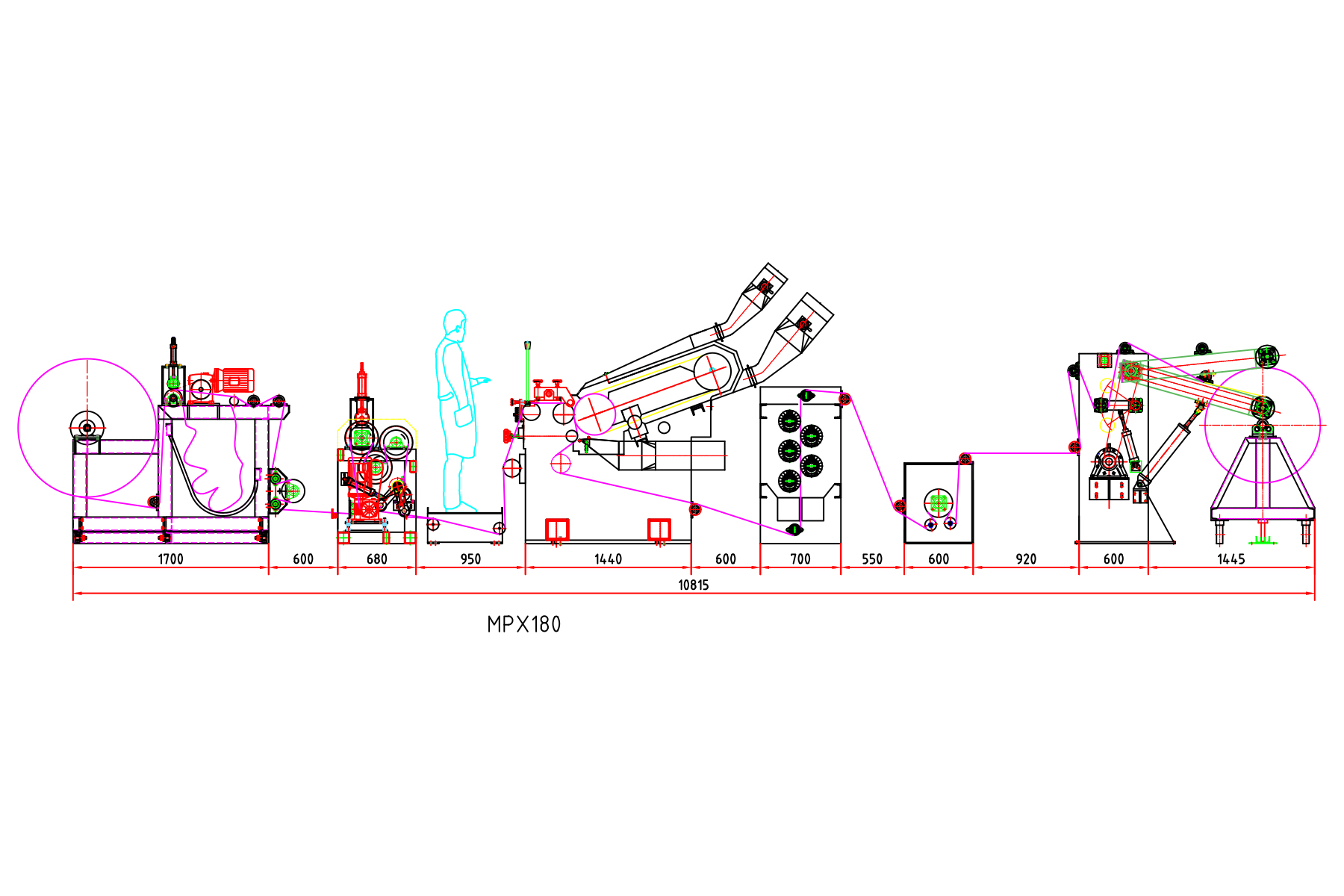

  • MPX180 Rational Belt Leather Grinding Machine Workflow
About Us
Jiangsu Huayi Machinery Co., Ltd.
Over two decades, Huayi has grown from humble beginnings to a robust enterprise with over 50 million RMB in fixed assets. Our modern factory spans 10,000+ square meters, complemented by 1,000+ square meters of office space. Starting with a single type of sueding machine, we have upheld the spirit of innovation, continuously expanding our product offerings. Now, we have established a comprehensive portfolio of over 30 models of sueding machines, including vertical, horizontal, planetary, dry, wet, and CNC solutions, precisely catering to the needs of various fabrics such as cotton, polyester, woven, knitted, and even microfiber, offering customized sueding treatments. As China Quantitative Oblique Belt Leather Grinding Machine MPX180 Manufacturers and Quantitative Oblique Belt Leather Grinding Machine MPX180 Factory, through twenty years of dedicated effort, we have overcome numerous technical challenges in sueding and excelled in optimizing and upgrading our products, establishing Huayi sueding machines as a new benchmark in the industry and earning widespread recognition and praise. The fruits of wisdom and innovation drive our development, as evidenced by our accumulation of 31 invention patents and 30 utility model patents, a testament to our technical prowess. Since 2016, our company has been honored as a "National High-tech Enterprise" for consecutive years, demonstrating our outstanding achievements in technological innovation. Looking forward, Huayi will continue with even greater enthusiasm, joining hands with new finishing equipment such as Air Softening Machine, Steam Flow Washing Machine, and Continuous Tumble Dryers, to jointly create an even more brilliant future. We will continue to delve deeply into the field of finishing equipment, striving for the next twenty years with craftsmanship and determination.
Certificate Of Honor
  • Patent certificate
  • Patent certificate
  • Patent certificate
  • Patent certificate
  • Patent certificate
  • Patent certificate
  • Patent certificate
  • Patent certificate
News
  • The recent high temperatures have been incredibly high, and our colleagues have been working diligently and steadfastly at their posts. To express our gratitude to every Huaren employee for their dedication, the company has specially prepared some summer supplies to bring you some care and coolness! The company's admi...

    READ MORE
  • The Vertical Combined Sueding Machine MM-Model is a cutting-edge solution designed for the fabric finishing industry. Combining innovative technology with high precision, this machine is engineered to provide high-quality sueding effects on various fabrics, enhancing their texture and appearance. The MM-Model brings su...

    READ MORE
  • Jiangsu Huayi Machinery will be exhibiting at the 2025 Uzbekistan CAITME exhibition and will simultaneously launch a newly upgraded multilingual official website (independent website), welcoming global customers with a more professional attitude. Wherever you are, Huayi Machinery's innovative technologies and services...

    READ MORE
Message Feedback
Industry knowledge

What is the MPX180 Quantitative Biased Belt Leather Grinding Machine?

The MPX180 Quantitative Biased Belt Leather Grinding Machine is a highly integrated, fully automatic leather sanding machine that combines versatility, high-precision control, easy maintenance, and broad compatibility to meet the diverse needs of the modern leather and composite material processing industry. Its core design lies in its advanced 3200mm circular sanding belt and beveled belt grinding mechanism, an innovative design that delivers significant performance advantages.

The 3200mm circular sanding belt provides a longer contact area for sanding, eliminating the transverse defects caused by sanding belt seams in traditional sanding machines, thereby ensuring a smooth and uniform surface finish on the processed fabric. This circular sanding belt design reduces machine downtime, making belt changes quick and easy, significantly improving production efficiency.

The beveled belt grinding mechanism effectively improves sanding uniformity and accuracy by adjusting the angle of contact between the sanding belt and the material. The operator can flexibly adjust the angle, pressure, and sanding belt speed to achieve precise surface treatments for different leather materials, such as cowhide, sheepskin, microfiber leather, and synthetic composites. This precise control ensures that the finished leather meets high visual and tactile standards, meeting the stringent requirements of the high-end footwear, automotive interior, and furniture industries.

The MPX180 Quantitative Biased Belt Leather Grinding Machine is more than just a simple flat grinder. It supports a variety of processing modes, including standard flat grinding, pattern grinding, and complex edge and corner trimming. Pattern grinding allows for customized textures on the leather surface, enhancing the product's design and added value. Edge and corner trimming ensures dimensional accuracy during cutting and splicing, minimizing waste.

The machine is highly automated and equipped with an intelligent CNC system, allowing operators to easily set and change parameters, meeting the needs of small-batch, diversified production. Its modular design also makes routine maintenance and parts replacement quick and efficient, significantly reducing the risk of production downtime.

How to Use the MPX180 Quantitative Biased Belt Leather Grinding Machine?

The MPX180 Quantitative Biased Belt Leather Grinding Machine's intuitive and convenient operation makes it particularly suitable for deployment in automated production lines for medium- to large-scale leather goods factories. The following are detailed operating steps:

Material Loading: The operator must lay the material to be processed (such as microfiber leather, PU, PVC, non-woven fabrics, synthetic fibers, or cotton) neatly and flatly on the conveyor platform, ensuring that the edges of the material are aligned to ensure stable conveyor belt feeding into the grinding area. The platform features an automatic adjustment function to accommodate materials of varying thicknesses and sizes, improving loading efficiency and reducing manual intervention.

Function Selection: The equipped intelligent CNC panel allows users to switch between desired processing modes, such as "Flat Grinding," "Fine Grinding," or "Cutting," with a single click. The system features a graphical interface for intuitive operation and a memory function for quick recall of commonly used parameter settings, reducing commissioning time and improving equipment utilization.

Parameter Setting: Based on the physical properties and processing requirements of different materials, the operator can precisely set key parameters such as grinding pressure, belt speed, and bevel angle within the CNC system. The MPX180 includes a built-in parameter recommendation library and supports custom settings to ensure optimal grinding results and material protection for a variety of fabrics.

Belt Replacement: This machine utilizes a high-strength, 3200mm endless abrasive belt with only one joint, significantly reducing the risk of horizontal streaks. Replacing the belt requires no complex disassembly; simply loosen the tensioning mechanism to easily install and position the new belt. This user-friendly design reduces downtime and effectively improves machine operation.

Starting the Grinding Process: After confirming that the material loading and parameter settings are correct, the machine can be started. During operation, the MPX180 automatically executes the configured steps and simultaneously activates five high-pressure nozzles, three brushes, and a negative pressure dust removal system to remove dust and debris generated during the grinding process, keeping the abrasive belt clean and improving grinding efficiency and quality consistency.

Finished Product Output: After processing is completed, the system automatically transports the processed material to the discharge port. The finished product has a smooth, flat surface, free of noticeable horizontal streaks or burn marks, and offers excellent visual and tactile qualities. It can be directly processed for subsequent steps (such as embossing, coating, or sewing), significantly improving overall production speed and yield rate.

What are the core advantages of the MPX180 Quantitative Biased Belt Leather Grinding Machine?

Multifunctional Integration, Eliminating the Problem of Tedious Machine Changeovers

The MPX180 Quantitative Biased Belt Leather Grinding Machine integrates three core functions: cutting, flat grinding, and pattern grinding, truly achieving "one machine for multiple uses." Traditional production lines frequently require switching between machines to meet different processing requirements, which not only wastes time but also easily leads to docking errors, compromising overall product consistency. The MPX180, with its modular control system, can switch between functional modes in seconds to accommodate various leather processing steps. Whether coarse grinding or fine graining, the same machine can be used for both, significantly simplifying the operational process, reducing labor reliance, and improving workshop automation. This is crucial for leather processing plants striving for efficient and stable production capacity.

Innovative Abrasive Belt Structure, Eliminating Horizontal Grain Defects

The conventional abrasive belts used in traditional leather grinding equipment often have excessive or uneven seams, leaving noticeable horizontal grain defects on the leather surface, seriously affecting the finished product's appearance. The MPX180 Quantitative Biased Belt Leather Grinding Machine's design breaks with industry convention, featuring a 3200mm endless sanding belt with only one joint. Its angled grinding path effectively breaks the right angle between the belt joint and the direction of leather movement, significantly reducing the formation of horizontal streaks. This structure, combined with a high-precision belt tensioning system and a stable feed control mechanism, ensures a more uniform and continuous grinding process, ultimately resulting in a naturally smooth, flawless leather surface that meets the stringent aesthetic demands of the high-end market.

Intelligent Dust Removal System Ensures Continuous and Stable Output

To address issues such as belt clogging and reduced grinding efficiency during continuous operation, the MPX180 is equipped with a highly efficient intelligent dust removal system. This system includes five high-pressure air nozzles and three sets of dynamic brushes, which continuously remove foreign matter and dust during each sanding cycle. Furthermore, an integrated negative pressure dust removal system removes fine particles in real time, preventing their accumulation within the machine. This system not only effectively extends the life of the abrasive belt but also ensures optimal cleaning at every grinding contact, resulting in more consistent and long-lasting high-quality output, reduced maintenance frequency, and improved overall equipment availability.

Strong Material Compatibility Adapts to Diverse Market Demands

The MPX180 Quantitative Biased Belt Leather Grinding Machine boasts exceptional material adaptability, being compatible with a wide range of substrates, including microfiber leather, PU leather, PVC, artificial leather, non-woven fabrics, chemical fibers, and cotton, demonstrating exceptional process flexibility in practical applications. Different materials have varying requirements for parameters such as grinding accuracy, pressure, and speed. The MPX180's intelligent CNC adjustment system enables fine-tuning of multiple parameters, including grinding angle, feed speed, and pressure intensity, ensuring optimal grinding results without damaging the material. This feature enables the MPX180 to be widely used in a variety of market segments with demanding leather surface treatment standards, such as high-end footwear, fashion luggage, furniture leather, and automotive interiors, helping customers enhance their product competitiveness.
