Planetary Carbon (Ceramic) Fiber Sueding Machine for Knitting X-Model

Contact Us
Products Features
  • Fiber Roller Sanding:

    Carbon Fiber/Ceramic Fiber

  • Low Tension Knitted Sanding:

    Minimizes fabric damage while delivering a smooth and refined peaching finish.

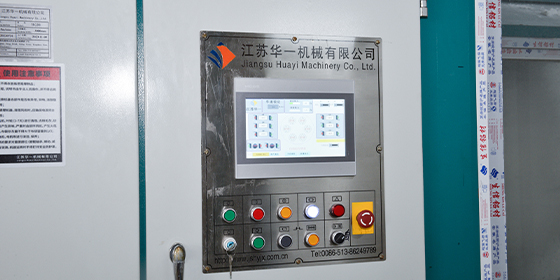

  • Easy to Operate:

    Equipped with an intuitive touch screen control system for ease of use.

  • Easy to Maintain:

    Features an efficient dust collection system, extended fiber lifespan, convenient maintenance.

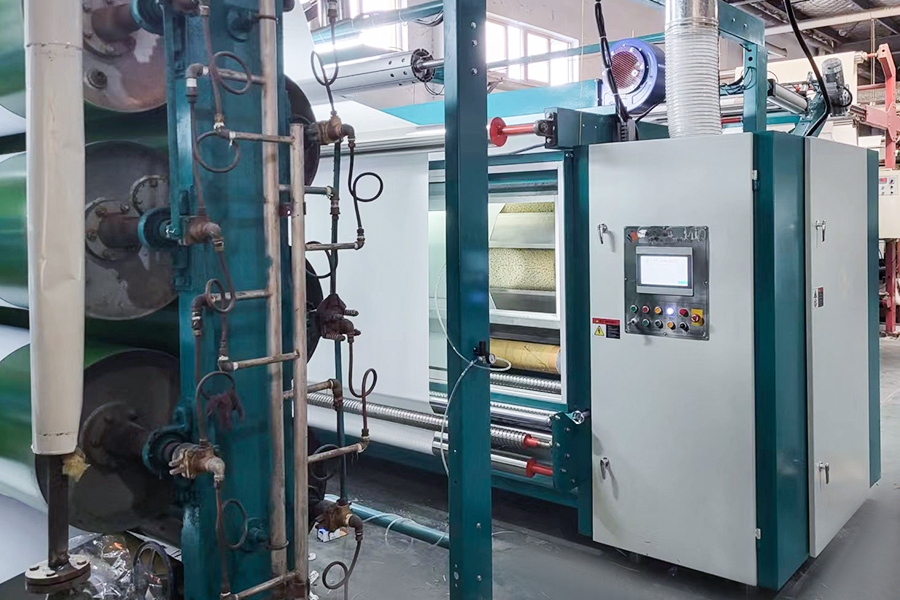

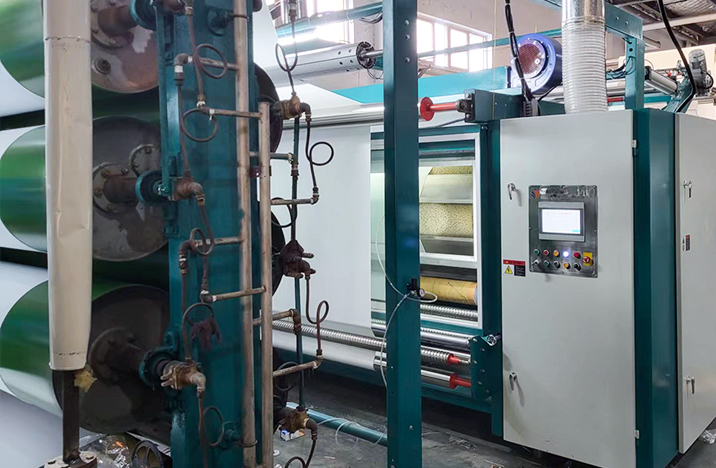

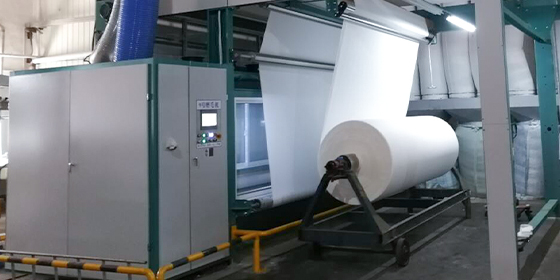

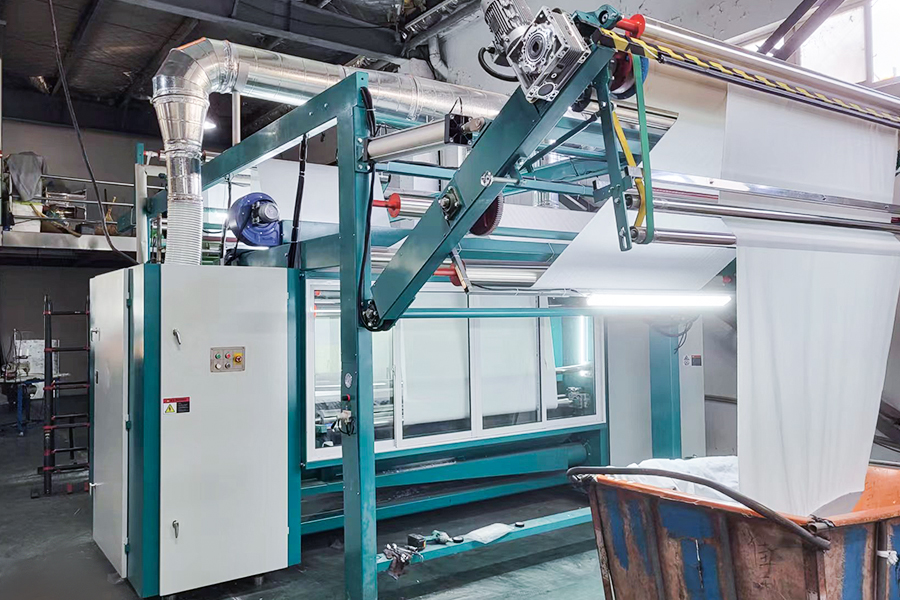

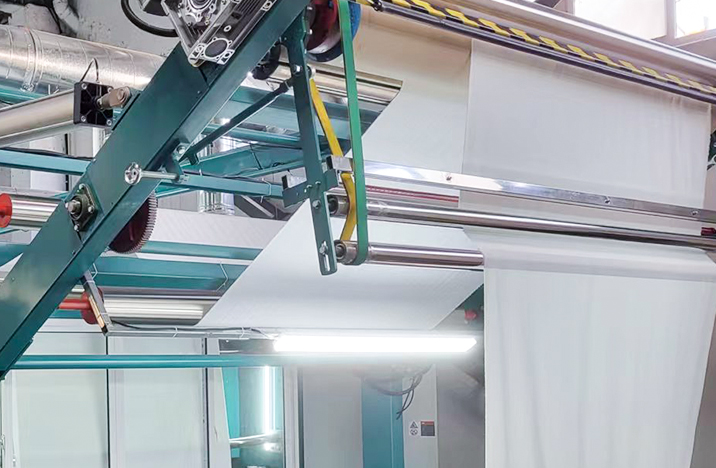

Running Machine on Site
Performance Introduction
Planetary Structure:

Combining the advantages of single sanding roller rotation and overall multi-sanding roller rotation, specially designed for knitted fabric sueding. This structure makes the sanding process more uniform and delicate, significantly enhancing both efficiency and finish quality.

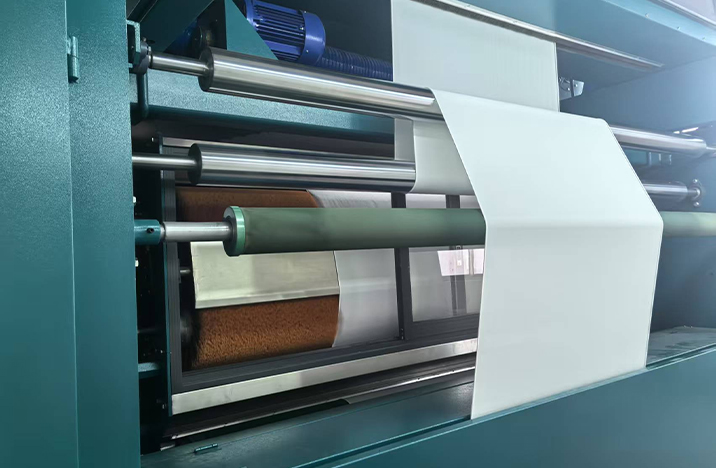

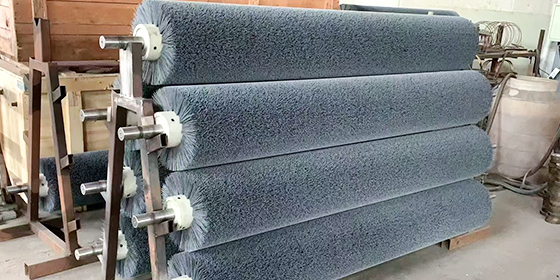

Fiber Roller Sanding:

The grinding roller is made of high-quality carbon (ceramic) fiber material, which is wear-resistant, durable and efficient.

Low-Tension Knitted Sanding:

The machine is designed to minimize tension on knitted fabrics during the sueding process. By precisely controlling tension levels, it protects the structural integrity of the fabric while delivering a flawless peaching result.

Technical Parameters

Name

 Details

Working Width

2000~2400mm

Max Fabric Width

1800~2200mm

Mechanical Speed

5-50m/s

Roller Quantity

6 pcs

Roller Type

Carbon/Ceramic Fiber Roller

Installed Power

70 KW

Roller Diameter

290mm

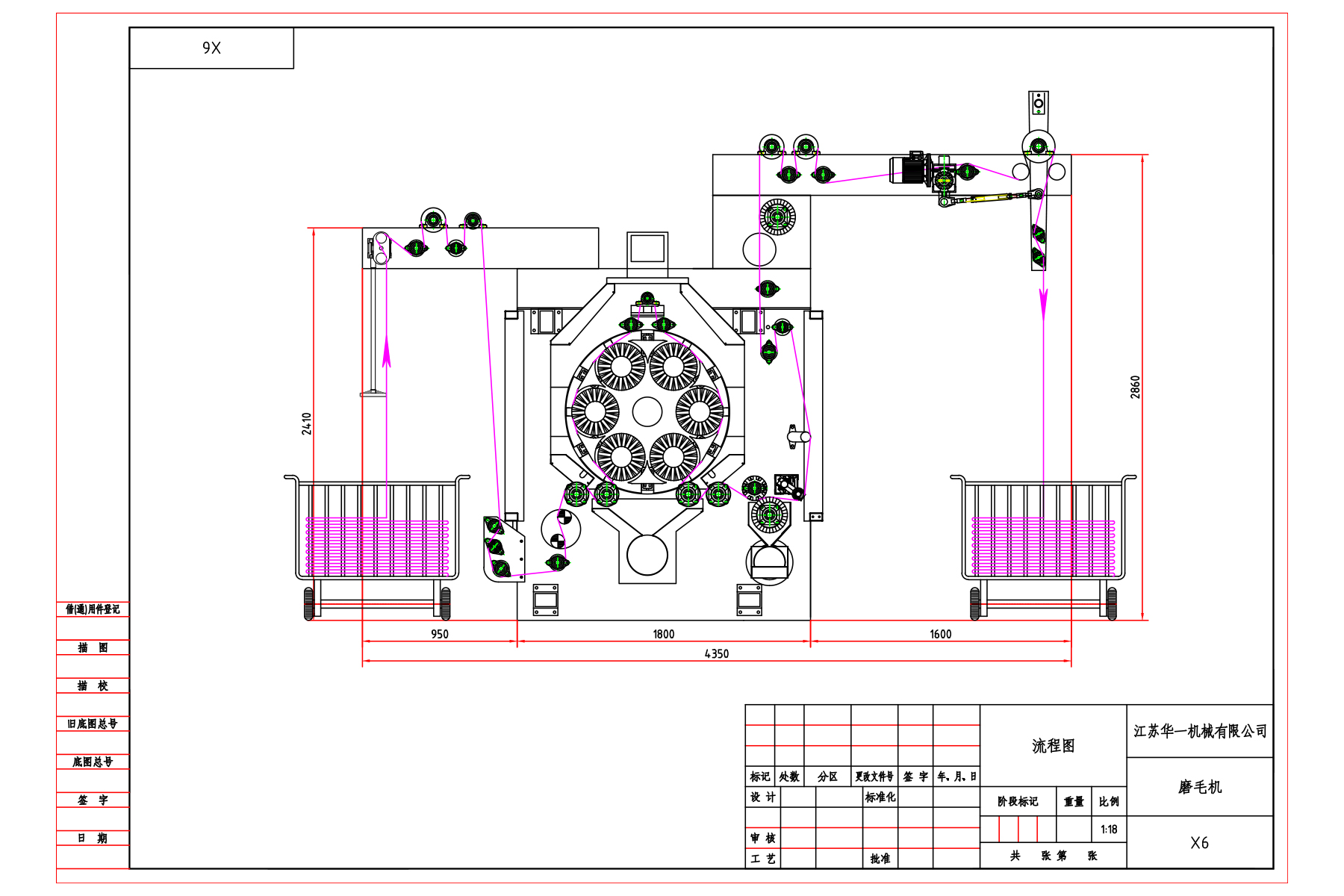

Workflow Chart
  • X6 Flowchart - Model
